ISO-K HV Blank Flanges (Clamped)

$58.59 USD

Sale Sold out

In stock

ISO-K and ISO-F are two common high-vacuum flange types, differing primarily in their fixing methods. ISO-K utilizes a snap-on fixing system, with flange claws and a sealing ring creating a seal. ISO-F utilizes bolted fixing, tightly connecting the flange to the retaining ring, sealing ring, and other components.

Both types can achieve a from atmosphere to ~10-8 torr or mbar., making them suitable for high-vacuum systems. Most models operate stably in environments ranging from 0°C to 180°C.

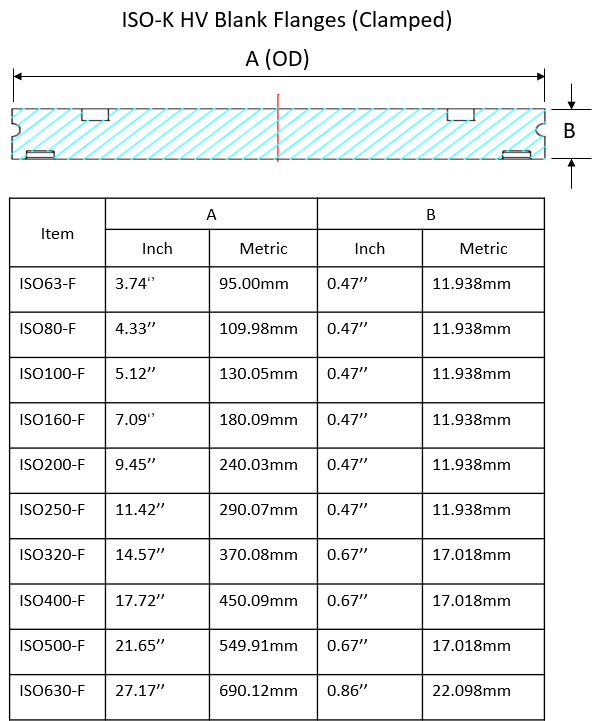

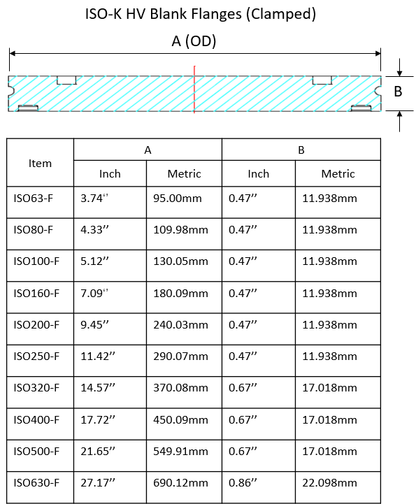

Dimensions

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
ISO-K HV Blank Flanges 63 / 304L SSAIF02063304LSS	ISO-K HV Blank Flanges 63 / 304L SSAIF02063304LSS $58.59/ea	$0.00	Quantity	$58.59/ea	$0.00

ISO-K HV Blank Flanges 63 / AL6061AIF02063AL6061	ISO-K HV Blank Flanges 63 / AL6061AIF02063AL6061 $43.88/ea	$0.00	Quantity	$43.88/ea	$0.00

ISO-K HV Blank Flanges 80 / 304L SSAIF02080304LSS	ISO-K HV Blank Flanges 80 / 304L SSAIF02080304LSS $76.73/ea	$0.00	Quantity	$76.73/ea	$0.00

ISO-K HV Blank Flanges 80 / AL6061AIF02080AL6061	ISO-K HV Blank Flanges 80 / AL6061AIF02080AL6061 $54.86/ea	$0.00	Quantity	$54.86/ea	$0.00

ISO-K HV Blank Flanges 100 / 304L SSAIF02100304LSS	ISO-K HV Blank Flanges 100 / 304L SSAIF02100304LSS $88.11/ea	$0.00	Quantity	$88.11/ea	$0.00

ISO-K HV Blank Flanges 100 / AL6061AIF02100AL6061	ISO-K HV Blank Flanges 100 / AL6061AIF02100AL6061 $63.32/ea	$0.00	Quantity	$63.32/ea	$0.00

ISO-K HV Blank Flanges 160 / 304L SSAIF02160304LSS	ISO-K HV Blank Flanges 160 / 304L SSAIF02160304LSS $119.61/ea	$0.00	Quantity	$119.61/ea	$0.00

ISO-K HV Blank Flanges 160 / AL6061AIF02160AL6061	ISO-K HV Blank Flanges 160 / AL6061AIF02160AL6061 $105.84/ea	$0.00	Quantity	$105.84/ea	$0.00

ISO-K HV Blank Flanges 200 / 304L SSAIF02200304LSS	ISO-K HV Blank Flanges 200 / 304L SSAIF02200304LSS $222.11/ea	$0.00	Quantity	$222.11/ea	$0.00

ISO-K HV Blank Flanges 200 / AL6061AIF02200AL6061	ISO-K HV Blank Flanges 200 / AL6061AIF02200AL6061 $139.82/ea	$0.00	Quantity	$139.82/ea	$0.00

ISO-K HV Blank Flanges 250 / 304L SSAIF02250304LSS	ISO-K HV Blank Flanges 250 / 304L SSAIF02250304LSS $342.23/ea	$0.00	Quantity	$342.23/ea	$0.00

ISO-K HV Blank Flanges 250 / AL6061AIF02250AL6061	ISO-K HV Blank Flanges 250 / AL6061AIF02250AL6061 $177.17/ea	$0.00	Quantity	$177.17/ea	$0.00

ISO-K HV Blank Flanges 320 / 304L SSAIF02320304LSS	ISO-K HV Blank Flanges 320 / 304L SSAIF02320304LSS $826.70/ea	$0.00	Quantity	$826.70/ea	$0.00

ISO-K HV Blank Flanges 320 / AL6061AIF02320AL6061	ISO-K HV Blank Flanges 320 / AL6061AIF02320AL6061 $339.35/ea	$0.00	Quantity	$339.35/ea	$0.00

ISO-K HV Blank Flanges 400 / 304L SSAIF02400304LSS	ISO-K HV Blank Flanges 400 / 304L SSAIF02400304LSS $1,011.38/ea	$0.00	Quantity	$1,011.38/ea	$0.00

ISO-K HV Blank Flanges 400 / AL6061AIF02400AL6061	ISO-K HV Blank Flanges 400 / AL6061AIF02400AL6061 $439.43/ea	$0.00	Quantity	$439.43/ea	$0.00

ISO-K HV Blank Flanges 500 / 304L SSAIF02500304LSS	ISO-K HV Blank Flanges 500 / 304L SSAIF02500304LSS $1,607.00/ea	$0.00	Quantity	$1,607.00/ea	$0.00

ISO-K HV Blank Flanges 500 / AL6061AIF02500AL6061	ISO-K HV Blank Flanges 500 / AL6061AIF02500AL6061 $629.96/ea	$0.00	Quantity	$629.96/ea	$0.00

ISO-K HV Blank Flanges 630 / 304L SSAIF02630304LSS	ISO-K HV Blank Flanges 630 / 304L SSAIF02630304LSS $2,399.00/ea	$0.00	Quantity	$2,399.00/ea	$0.00

ISO-K HV Blank Flanges 630 / AL6061AIF02630AL6061	ISO-K HV Blank Flanges 630 / AL6061AIF02630AL6061 $1,673.91/ea	$0.00	Quantity	$1,673.91/ea	$0.00
